12F - 288F Single Sheath Multi Tube
Micro Module 4FRP Design Duct / ADSS Optical Fibre Cable

Applications

  • The universal design is suited for use in most network arenas, including backbone, access and distribution.
  • Quick fibre preparation ready for installation.
  • Installation within ducts using blown on pulling techniques.
Ipsum

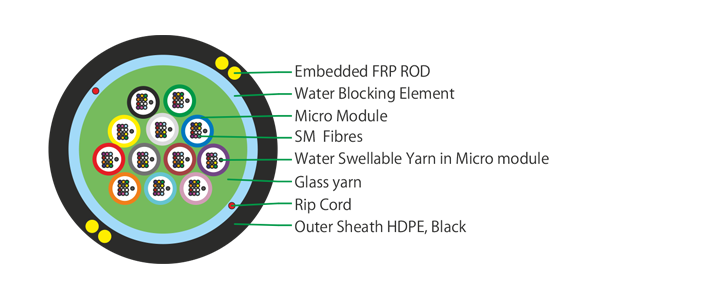

Typical Cross section of 144 Fibres

Cable Construction Details

  • The micro‑module unit consist of 12 fibres along with WS Yarn an easily strippable and flexible.
  • Glass yarn as peripheral strength member.
  • Non‑metallic and anti‑buckling element FRP rod (4 nos) used as Embedded Strength Member.
  • Water Blocking Element wrapped over Aramid Yarn.
  • HDPE Outer sheath, Black Colour, UV Stabilized.

Technical Characteristics

FIBRE COUNT DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operation Installation Operation Installation Operation
12F 6.0 32 1500 700 15D 20D -5°C to +45°C -30°C to +60°C
24F 7.5 40 2000 900 15D 20D -5°C to +45°C -30°C to +60°C
36F 7.5 40 2000 900 15D 20D -5°C to +45°C -30°C to +60°C
48F 8.5 50 2800 1200 15D 20D -5°C to +45°C -30°C to +60°C
72F 10.5 80 3800 1600 15D 20D -5°C to +45°C -30°C to +60°C
96F 11.2 100 4500 2000 15D 20D -5°C to +45°C -30°C to +60°C
144F 12.3 110 5000 2300 15D 20D -5°C to +45°C -30°C to +60°C
288F 15.0 160 5000 2300 15D 20D -5°C to +45°C -30°C to +60°C

Fibre & Micro Module Colour Coding

Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua
*For Fibre Count 12F We provide the above colour code
*For Higher Fibre count we provide contrast dot marking of above colour code

Special Features

  • Reduced diameter micro modules.
  • Flexible Micro modules are easily removed without the need for tools.
  • Reduce installation time and costs.
  • Small cable diameter & lightweight.
  • Requires no grounding or bonding due to all‑dielectric construction.

Drum Length

  • 2000/ 4000 meters ± 5%

Mechanical Characteristics

Kink Resistance (mm)
[IEC 60794-1-2-E10] 		15 x D, D = Cable Diameter
Impact Resistance (Nm)
[IEC 60794-1-2-E4] 		5 Nm, 3 Nos at 500mm apart
Crush Resistance (N)
[IEC 60794-1-2-E3]		 2000 N [100 X 100 mm] for 60 sec
Torsion Resistance
[IEC 60794-1-2-E7]		 5 Cycle [± 180°] 40 N Weight
Length under Test‑2 meters
Repeated Bending
[IEC 60794-1-2-E6] 		30 Cycle, r = 20 X D, 5 Kg Load,
D = Cable Diameter
Water Penetration
[IEC 60794-1-22-F5 B/C] 		1 Meter Water Head, 3 Meters
Cable Sample, 24 Hours
Micro Module Strip‑ability Micro Module Easy Strippable, 1 meter in I minutes
