FIBRE OPTIC CABLES > AERIAL > ADSS > ULTRA‐LIGHT WEIGHT

2F-96F Single Sheath Ultra Light Weight
Weight - Compact Fibre Unit Optical Fibre Cable

Applications

  • This Cable is suitable for FTTH Roll out and a range of light weight drop type design / construction cables for installation in the Fibre Network in Overhead and Underground environments.
  • This cable meets the breaking load requirement between 1350 N to 2000 N in the interests of safety for overhead applications. It benefits form unique safety features of predictable breaking load which is essential in the event of vehicle strike, to protect equipment and minimize the risk of loss of tangible assets that could potentially harm personnel, property or equipment and will be a fully safe aerial installation solution. Span length of 55 meters maximum.
Ipsum

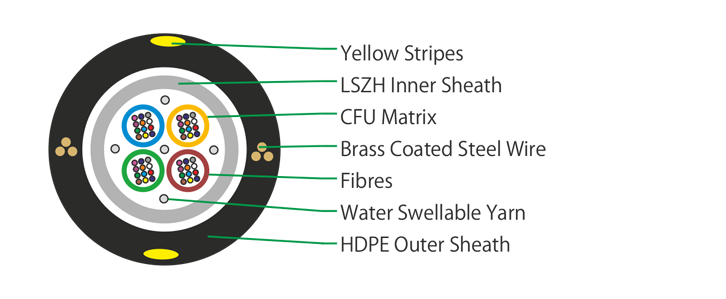

Typical Cross section of 48 Fibres

Cable Construction Details

  • The CFU units consist of groups of fibres.
  • The CFU are surrounded with water swelling elements to protect against moisture ingress.
  • Inner Sheath of HFFR, Black Colour.
  • Embedded strength members protect from against buckling.
  • Outer Sheath of HDPE, UV Stabilized, Black Colour.

Technical Characteristics

FIBRE COUNT DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operation Installation Operation Installation Operation
4F 7.0 38 950 500 10D 12D -40°C to +60°C -40°C to +60°C
12F 7.2 38 950 500 10D 12D -40°C to +60°C -40°C to +60°C
24F 7.2 38 950 500 10D 12D -40°C to +60°C -40°C to +60°C
36F 7.2 38 950 500 10D 12D -40°C to +60°C -40°C to +60°C
48F 7.2 38 950 500 10D 12D -40°C to +60°C -40°C to +60°C
72F 7.1 38 950 500 10D 12D -40°C to +60°C -40°C to +60°C
96F 7.1 38 950 500 10D 12D -40°C to +60°C -40°C to +60°C

CFU Colour coding

Natural
We provide contrast dot marking on CFU

Fibre Colour Coding

Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua
*For Fibre Count 12F We provide the above colour code
*For Higher Fibre count We provide contrast dot marking of above colour code

Special Features

  • Reduced diameter CFUs manufactured from soft and flexible elastomeric material.
  • Diametrically opposed embedded strength members provides excellent crush protection and Tensile performance.
  • CFUs are kink resistant and easily removed without the need for tools.
  • Ultra‑compactness, easier storage and faster installation.
  • UV protected.

Drum Length

  • 2000/ 4000meters ± 5%

Mechanical Characteristics

Kink Resistance (mm)
[IEC 60794-1-2-E10] 		10 x D, D = Cable Diameter
Impact Resistance (Nm)
[IEC 60794-1-2-E4] 		10 Nm, Number of Impact 1,
No. of Location꞉ 3 at 100 mm apart.
Crush Resistance (N)
[IEC 60794-1-2-E3]		 2000 N [100 X 100 mm] for 10
minutes, Total number of applied
load꞉ 3 at 250 mm apart
Torsion Resistance
[IEC 60794-1-2-E7]		 5 Cycle [± 180°] 100 N Weight,
Length under Test 1 meters
Water Penetration
[IEC 60794-1-22-F5 B/C] 		Water Head 1 m, 3 Meters
Cable Sample, 24 Hours
