Impregnated Glass Fibre Reinforcement NWB / WB
Product Description :

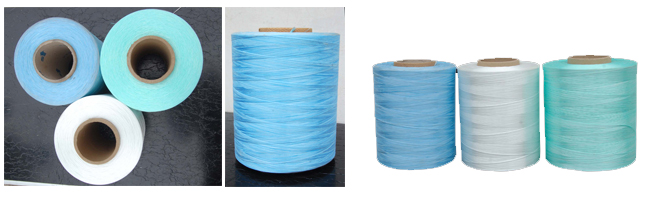

The Impregnated Glass Fibre Reinforcement products are manufactured from E-glass roving and polyurethane / super absorbent polymer resins. The IGR products are available in Natural / Light Green for Non Water Blocking type and natural / Light Blue for Water Blocking type. Mainly these IGR are used as reinforcement for optical fiber cables. These have the following advantages: Improved tensile strength, excellent surface finishing, rodent protection, no loose fibers, and flame resistance.
Product Application:
The Impregnated Glass Fibre Reinforcement products are manufactured from E-glass roving and polyurethane / super absorbent polymer resins. The IGR products are available in Natural / Light Green for Non Water Blocking type and natural / Light Blue for Water Blocking type. Mainly these IGR are used as reinforcement for optical fiber cables. These have the following advantages: Improved tensile strength, excellent surface finishing, rodent protection, no loose fibers, and flame resistance.
Product Characteristics
| SL. NO. | PROPERTY | UNIT | TEST METHOD | TYPE B | TYPE D |
| 1 | Linear Density | Tex | ASTM D 578 | 800 + 5% | 1260 ± 5% |
| 2 | Breaking load | N | ASTM D 885 | > 440 | > 600 |
| 3 | Tensile Modulus of Elasticity | N/mm2 | ASTM D 885 | > 65000 | > 65000 |
| 4 | Load at Elongation at 0.5% Strain | N | ASTM D 885 | ≥ 100 | ≥ 150 |
| 5 | Elongation at break | % | ASTM D 885 | ≤ 5.0 | ≤ 5.0 |
| 6 | Loss on Ignition | % | ASTM D4963-94 | 6 ± 2 | 6 ± 2 |
| 7 | Water Absorption,1.0 Minute* | % | ASTM D 570 | > 400 | > 400 |
* Applicable for Water blocking only
Packaging
| SL. NO. | PROPERTY | UNIT | TYPE B | TYPE D |
| 1 | Tube Inner diameter | mm | 94 | 94 |
| 2 | Package Outer diameter + 5.0 | mm | 170 | 190 210 225 195 215 235 250 |
| 3 | Traverse + 2.0 | mm | 250 | 250 |
| 4 | Tube Length + 2.0 | mm | 275 | 275 |
| 5 | Product Length | km | 6.3 | 8.4 10.5 12.6 6.3 8.4 10.5 12.6 |
| 6 | Package Weight + 0.5 | kg | 5 | 7 9 10 8 11 13 16 |
| 7 | Package | No's | 1 | 1 |
| 8 | Packages / Pallet | No's | 100 | 80 |
| 9 | Pallet size ( L x W x H ) | mm | 1150 x 1150 x 1300 | 1150 x 1150 x 1300 |
Note: Higher length also possible if required in Type B (800 Tex).
